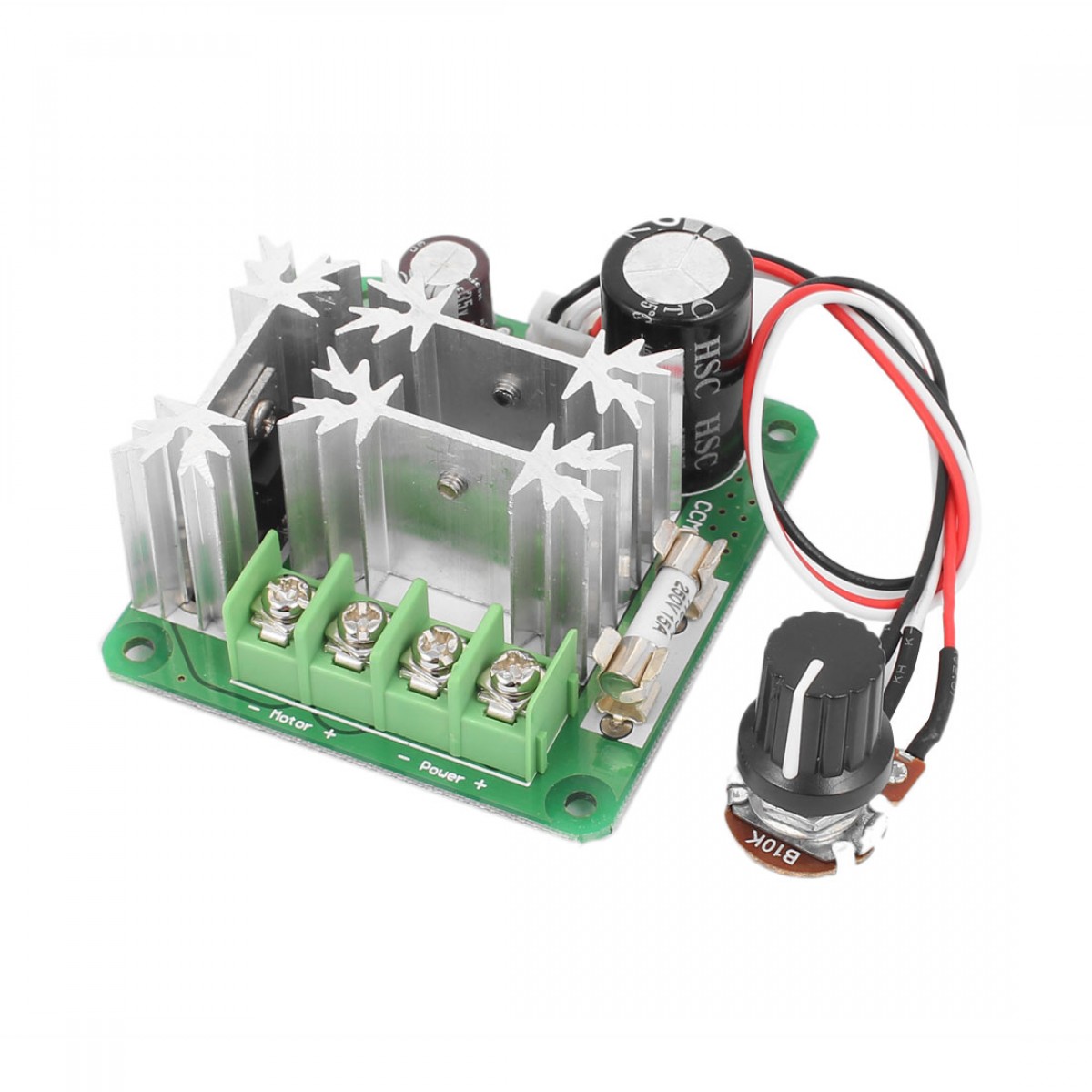

PWM DC Motor Speed Regulator Controller Switch DC (6V-90V) 15A

Description

• Operating Voltage (Input): DC 6 V to 90 V
• Power Range: 0.01 W to 1000 W
• Rated Current: 8 A continuous
• Maximum (Overload / Peak) Current: 15 A (via quick fuse or protective circuitry)
• Quiescent (Standby) Current: ≈ 0.005 A
• PWM Duty-Cycle Range: 0% to 100% adjustable
• PWM Frequency: Approx. 15 kHz to 16 kHz
• Module Dimensions: ~65 mm × 60 mm × 25 mm
• Protection Features:
  • Reverse-polarity protection
  • Over-voltage protection
  • Overload / short-circuit protection via onboard quick fuse (e.g., 15 A ceramic fuse)
• Control Interface:
  • Manual control via B10K potentiometer (knob, ~20 cm leads, 8 mm mounting)
  • External analog control via 0–5 V input (PLC or variable DC signal)
• Applications: Suitable for DC motor speed regulation—supports voltages like 6 V, 12 V, 24 V, 36 V, 48 V, 72 V, 90 V. Ideal for motor speed control, PLC-based systems, fans, conveyors, etc.
• Notes: Not compatible with brushless DC motors; reversing motor direction may require swapping output leads
