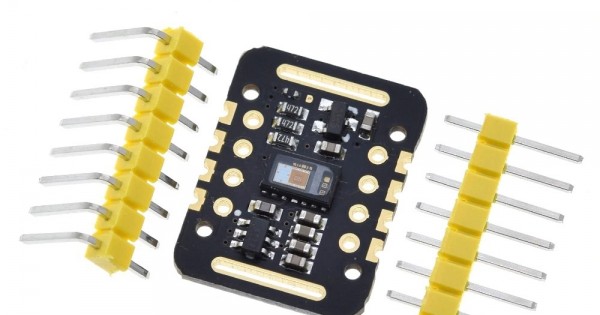

MAX30102 Heart Rate and Pulse Oximeter Sensor

Description

Features:

• Optical Heart-Rate Monitor and Pulse Oximetry Solution
• Upgraded version of MAX30100, the MAX30102 has better accuracy and reliability and some new features.
• New features include : Proximity sensing, and better ambient light cancellation.
• Tiny breakout board
• Low power
• Highly-integrated, small-size sensor
• Non-chest based heart-rate/SpO2 detection
• Ultra-low power consumption

Specifications:

• Power supply: 3.3V to 5.5V
• Current draw: ~600μA (during measurements),
• Current draw: ~0.7μA (during standby mode)
• Red LED Wavelength: 660nm
• IR LED Wavelength: 880nm
• Temperature Range: -40˚C to +85˚C
• Temperature Accuracy: ±1˚C
