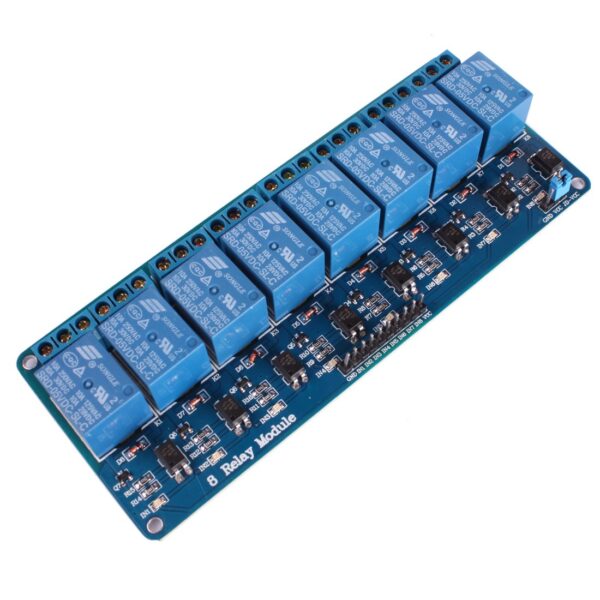

Description
- Operating Voltage: 5V DC.
- Trigger Voltage: 3.3V to 5V, compatible with microcontrollers like Arduino and Raspberry Pi.
- Maximum Switching Voltage: 250V AC or 30V DC, according to multiple Amazon product listings.
- Maximum Switching Current: 10A (some variations may have a lower current rating, like 2A).
- Number of Channels: 8, allowing for control of 8 independent circuits.
- Isolation: Typically includes optocouplers for electrical isolation between the control and load circuits.
- Indicators: LED indicators for power and the status of each relay channel.
- Action/Release Time: The time it takes for the relay to switch (action) and return to its original state (release) is typically less than 10ms and 5ms respectively, under the rated voltage.
- PCB: Often built on FR-4 fiberglass PCB with a thickness of 1.6mm.
- Size: Dimensions vary, but are generally around 155 x 55 x 24 mm (approximately 6.1 x 2.17 x 0.95 inches).
- Compatibility: Works with various microcontrollers like Arduino, Raspberry Pi, etc.
