8×8 LED RGB Matrix

Description

Quantity: 1pc 8×8 Matrix LED
Size:60mm x 60mm
Wavelength:467nm, 523nm, 623nm
Radiant Intensity @ 20mA see datasheet
Forward Voltage @ 20mA 3.4v max (see datasheet)

Viewing Angle 30 Degrees

An excellent 8×8 RGB Matrix LED perfectly suited for breadboard and Arduino–a compact 6cm x 6cm but more than large and bright enough to be noticed from a distance and with 0.1″ pin spacing, too! The display is common anode and the lenses diffused.

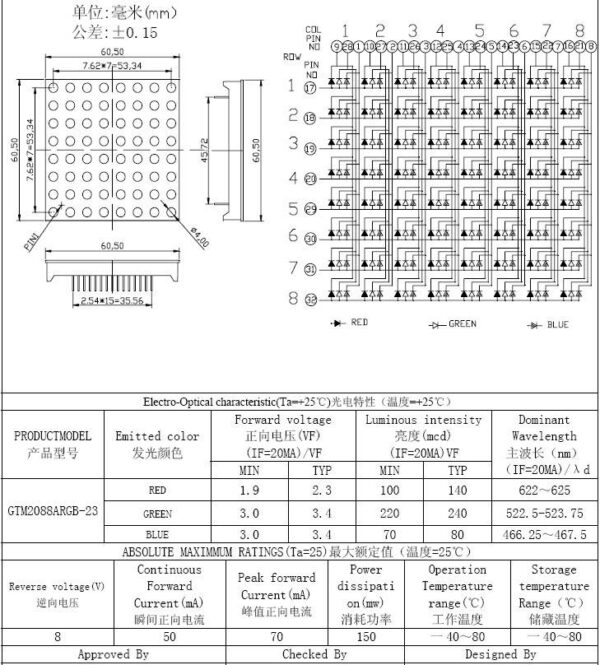

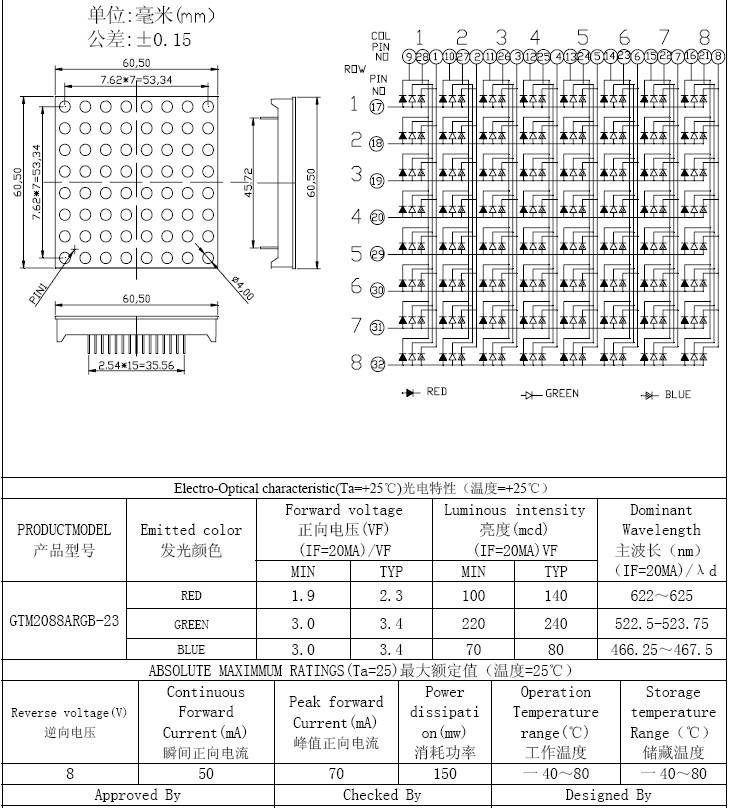

64 red, 64 blue and 64 green LED die for a total of 192 in a single package! Not to worry though, the pins are matrixed so there are only 32 pins total to contend with. The pin-out is available in the datasheet image above.
